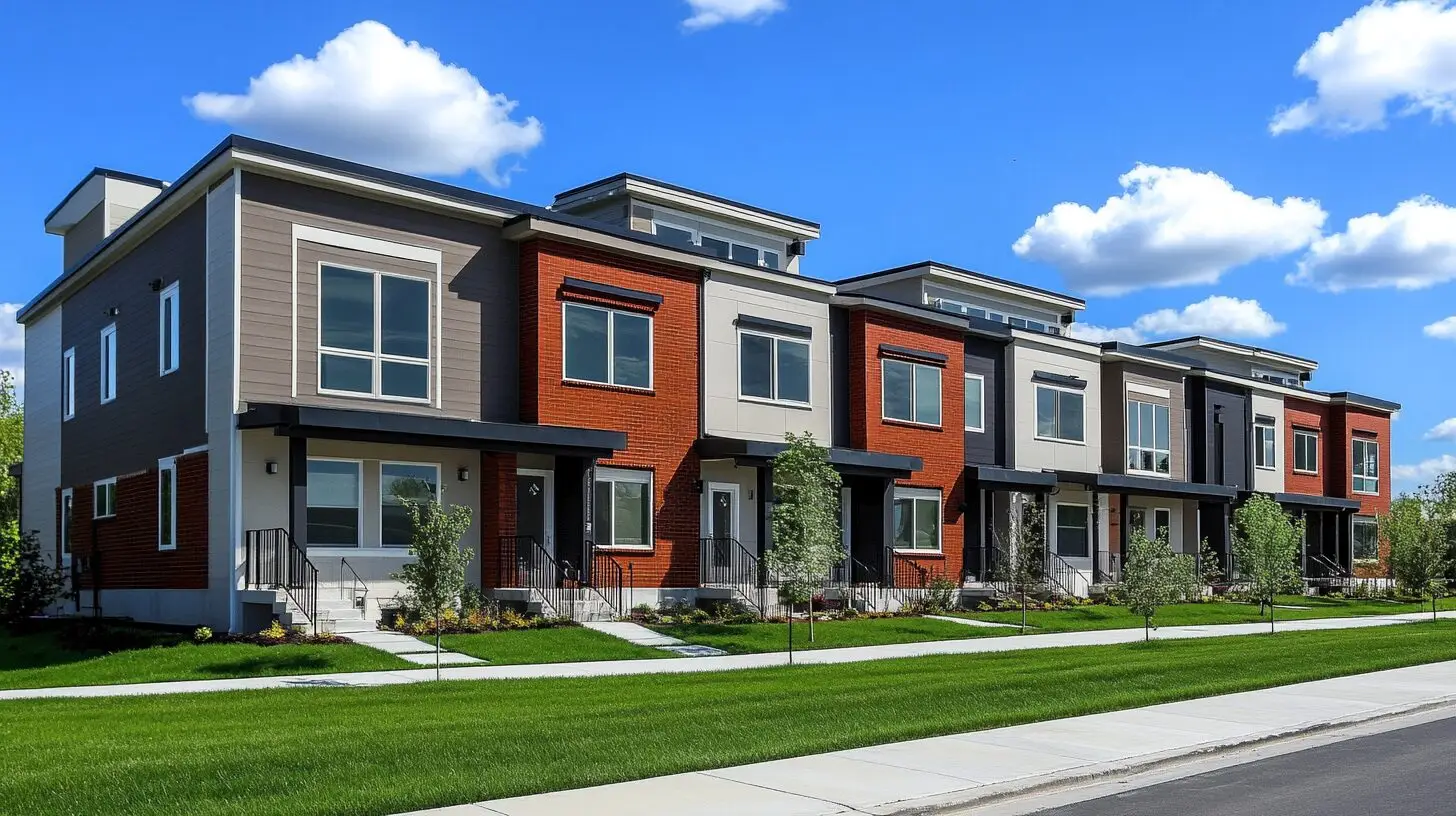

- This five-family house plan includes five units in total. Each end unit measures 1,350 sq. ft., with 700 sq. ft. on the main level and 650 sq. ft. on the second level, offering 3 bedrooms, 2.5 bathrooms, and a 2-car garage. The three middle units each measure 2,125 sq. ft., with 1,083 sq. ft. on the main level and 1,042 sq. ft. on the second, also featuring 3 bedrooms, 2.5 bathrooms, and a 2-car garage.
- Architectural Designs’ primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes – single family and multi-family ones – as well as garages, pool houses and even sheds and backyard offices.
- Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
- We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
- We can modify any house plan you see on our site. Learn more about modifications.
- Related Plan: Get a 6-unit multiplex with house plan 61576UT (10,334 sq. ft.).
What’s Included
- General notes
- Foundation plan
- Detailed floor plans
- Floor framing
- Roof framing
- Elevations
- Cross sections
- Electrical plans
- General details
What’s Not Included
- Architectural or Engineering Stamp – handled locally if required
- Site Plan – handled locally when required
- Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
- Energy calculations – handled locally when required
